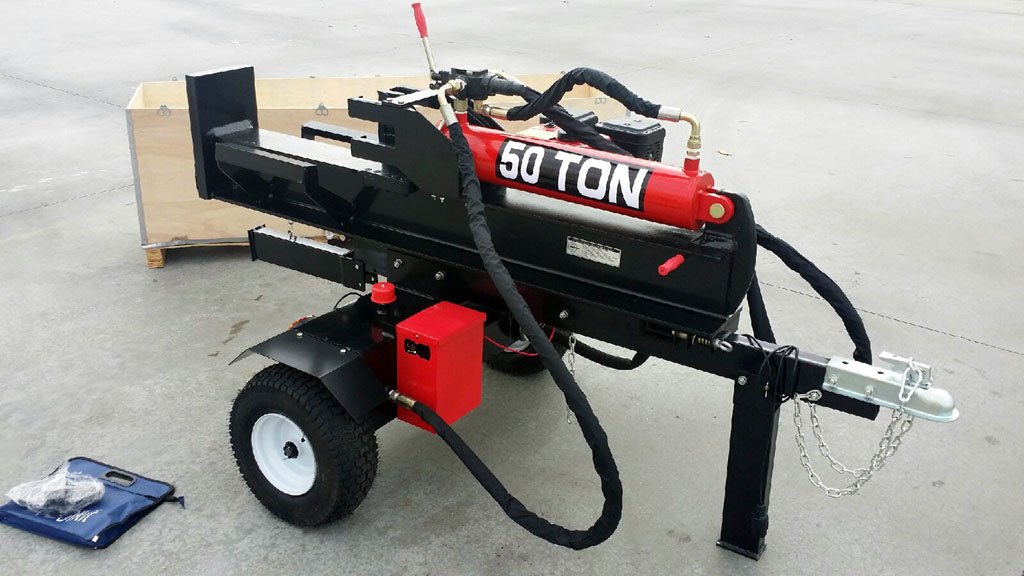

NEW - UPGRADED - 50 TON 15HP HYDRAULIC LOG SPLITTER
>UPGRADED WITH 22GPM PUMP, THICKER LINES, THICKER I-BEAM, LARGER CAPACITY TANK, LARGER TIRES
EXTREMELY FAST 10 SECOND CYCLE TIME!
This newly designed 2016 model is an upgraded 45 ton unit that we carry (which is still available). Due to many requests, we have upgraded the pump from 16gpm to 22gpm. We have made the tank 30% larger to allow for more hydraulic fluid (for long term use keeps the fluid from overheating). We have made the tires even larger than on the regular 45 ton unit (see pics below). We have also made the hydraulic lines larger, and also made the valve entrances larger on the 5.5" cylinder. The I-beam is also made thicker to allow for the extra power. This is one of the fastest and most powerful log splitters around. It has a 10 second cycle time! We ship fast, tracking # is provided right after payment. *Note, phone # is required before we can ship. Pickup or inspection is welcome from our Vista, CA facility to save on shipping cost. We will include the 4 way splitting wedge FREE of charge with each order.
Features / Specifications:
Convenient Horizontal or Vertical Use
50 TON MAX SPLITTING CAPACITY
Powerful 22GPM 2 stage pump
15HP 420cc Loncin Gas Motor - Commonly sold by Home Depot and others. Very good quality motors.
Max log length - 25"
Hydraulic oil capacity - 9 Gallons (not included)
Hydraulic oil type - 10wt AW32, Asle H-150, or ISO32 (available at any car parts store)
Towing tire package kit included w/ light package
Hydraulic Cylinder 5.5" x 24" Stroke
Heavy Duty I Beam
Hitch coupler size: 2" Ball
Rated maximum towing speed: 45 MPH
Net weight: 650lbs (Shipping weight 700lbs)
Overall dimensions: 91" length x 51.5" width x 70" height (if I-beam is vertical) (46" inches width at the wheels)
Hydraulic oil filter included (pre-installed)
Some assembly required - Ships in a strong crate for safety. Wedge, stripper, cylinder, and controller will already be pre-installed to the I-beam. Simple stand up the I-beam, then assemble the trailer package, and back up to the I-beam and bolt in place. Then mount motor (4 bolts) connect all hydraulic lines. Generally takes 1-2 hours depending on skill level. Tool needed for assembly: wire cutters (to cut metal wire holding motor / beam in place, two (2) crescent wrenches or a crescent wrench and a pair of pliers (to tighten bolts), philips head screw driver to open / close battery cage, and a funnel to add hydraulic fluid into tank and also oil into the motor. (not included)
IN STOCK AND SHIPS FAST!
1 Year Warranty
$199 Shipping to any business in mainland USA!
$45 Freight Residential Fee will apply to residential shipping addresses
>>SOME AREAS WILL HAVE AN ADDITIONAL CHARGE WHICH ARE HARD TO REACH BY THE FREIGHT CARRIERS. THESE ARE ISLANDS JUST OFF THE MAINLAND I.E. THE FLORIDA KEYS, LONG ISLAND, NANTUCKET, ETC. THERE IS A MANDATORY $50 MANHATTAN SURCHARGE ON ALL FREIGHT SHIPMENTS.
